Entryfy

Introducing Entryfy C1

Access control, intrusion detection and video. One unified controller.

Entryfy C1 brings access control, intrusion alarm management and video recording together in a compact controller developed in Sweden. Security-critical functions operate locally, supported by hardware-based protection and encrypted on-site video storage. Expand camera coverage without deploying a dedicated recording server.

Explore C1Explore E1

  • Access control

    Cards, PIN codes, schedules, interlocking and anti-passback. Controls 1–2 doors directly from C1.

  • Intrusion detection

    Supervised wired inputs and wireless detectors, with alarm handling managed locally on site.

  • Video

    Live viewing and recording, with footage stored encrypted on site and linked to the event that triggered it.

The controller

Entryfy C1. Engineered for security-critical environments.

Entryfy C1 combines access control, intrusion alarm management and video into a single controller, with shared control logic, event handling and storage. This reduces the need for separate system components, simplifies cabling and brings system administration together on one platform – from a single office door to perimeter security. Each C1 supports 12–14 cameras, with live viewing at 720p/10 fps and video recording at 1080p/25 fps.

Relay outputs
4
Configurable I/O
8
Single-cable power
PoE+
Cameras per unit
12–14
Local storage
Encrypted
Detector support
Wireless

Developed and manufactured in Sweden

Local operation

Critical security functions remain operational during external connectivity outages.

C1 makes security-critical decisions locally. If connectivity to cloud services, control rooms or radio links is lost, access control, intrusion alarm handling and recording from connected cameras continue on site. Try it in the demonstration.

C1 on site

Connection established

  • Access decisionsActive
    Credentials, schedules and interlock conditions are verified locally.
  • Alarm handlingActive
    Detection, state changes and acknowledgement continue.
  • Video recordingActive
    Connected cameras continue recording, linked to each event.
  • Event historyActive
    Events are stored locally and synchronised once connectivity is restored.

Alarm expansion

E1 connects your intrusion detection sensors.

C1 manages access control and video and acts as the central controller for intrusion detection. E1 is the alarm expansion module that provides the physical connections for detectors. PIR detectors, magnetic contacts, glass-break detectors and fence sensors connect to its supervised inputs, while C1 handles arming and disarming, alarm processing and events. E1 connects to C1 over a single bus cable.

  • 8 supervised alarm inputs and 2 outputs per E1
  • Tamper, open-circuit and short-circuit supervision on every input
  • Up to 16 E1 modules on a single bus to C1
  • Installed close to the detectors – at the fence line or inside the building
  • No separate alarm control panel to purchase or maintain

The platform

Unified management of access control, intrusion alarms and video.

Everything connected to C1 and E1 is managed through a unified web-based platform, giving operators a consolidated view of their security infrastructure – from a single door to an entire property portfolio.

  • Access control

    Manage doors, users, access groups and schedules. Grant or revoke permissions immediately and follow every entry in the access log.

  • Intrusion alarms

    Arm and disarm alarm areas, handle alarms using response procedures and see on the map exactly which door or detector triggered the alarm.

  • Video management

    Live view, recordings and playback for every camera, with thermal imaging and UAV video alongside fixed cameras.

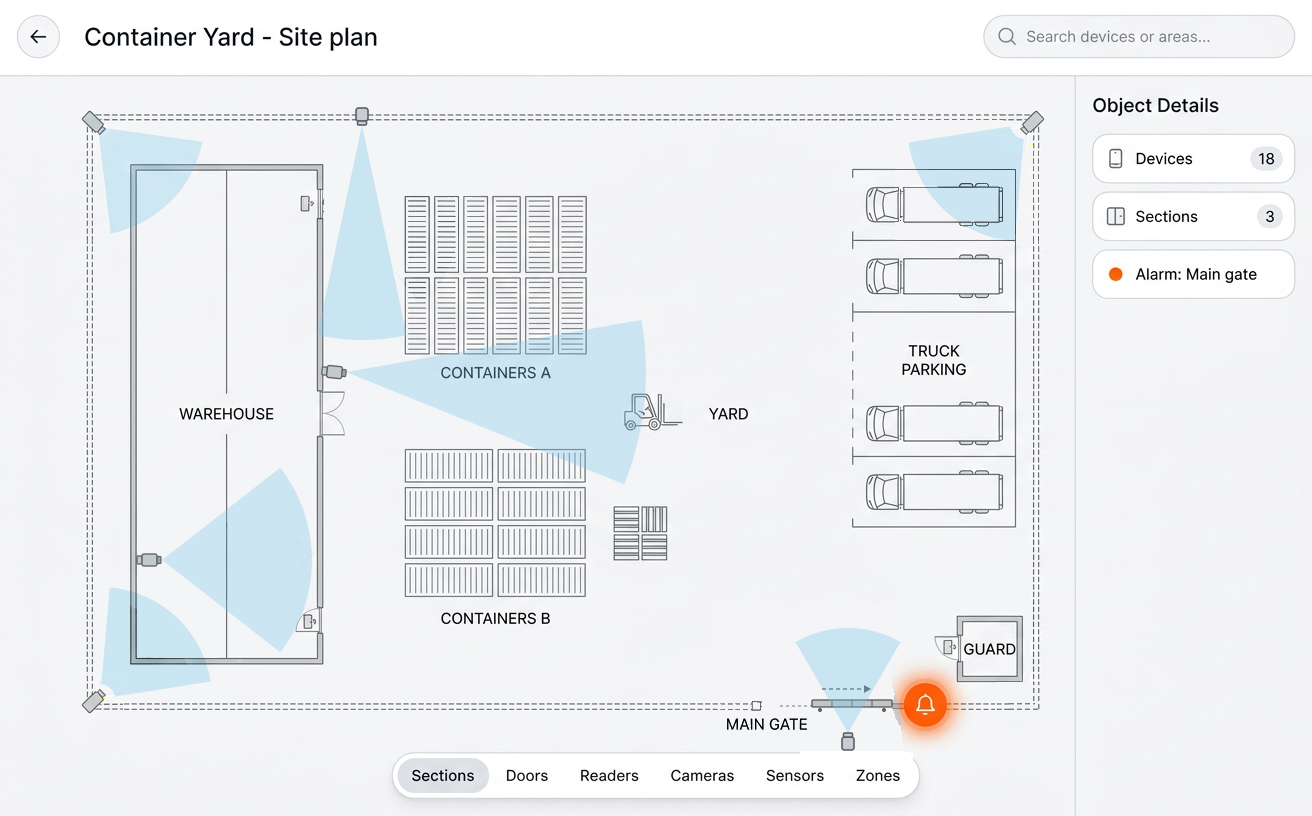

Site plan of a container yard in the Entryfy platform showing the warehouse with an interior camera, container rows, lorry parking along the right-hand fence, a thermal camera covering the lane between the warehouse and containers, and a camera outside the fence facing the main gate, which is partly open with an active alarm
MapsEvery door, reader, detector and camera on your own floor plans, with coverage areas and live status.

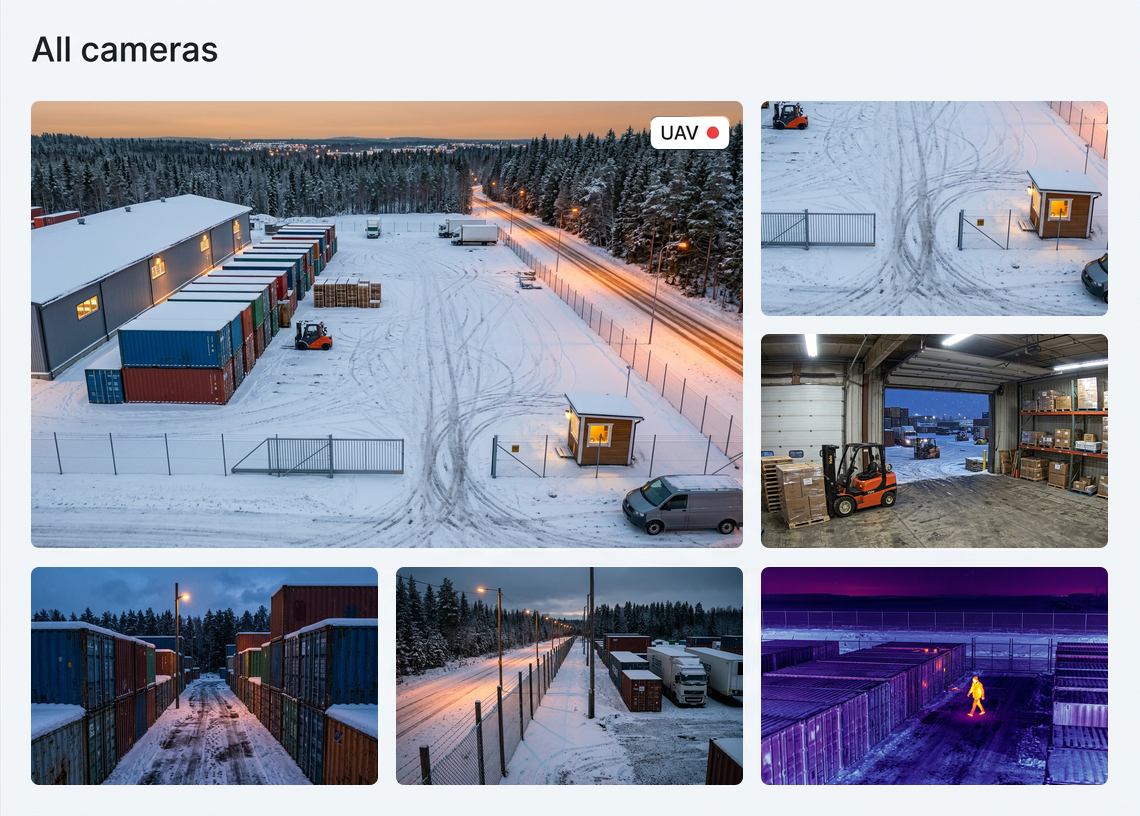

Video wall in the Entryfy platform with UAV video over the snow-covered container yard next to a PTZ view of the half-open sliding gate, loading bay, container aisle, perimeter fence and thermal cameras
Live viewCreate your own camera layouts. UAV, thermal and fixed cameras are displayed side by side in a single view.

The Entryfy app

Doors, alarms and access permissions. All in one app.

The Entryfy app gives users a clear overview of their access permissions, alarm areas and credentials. Users can see which doors they're authorised to access, when access is permitted and which entry methods are available.

From the app, users can remotely unlock doors, arm or disarm assigned alarm areas and manage their own access credentials without contacting an administrator for routine changes. Users with access to multiple organisations can seamlessly switch between them without signing out.

  • Remote access and QR codes: Remotely unlock authorised doors or use a QR code when a physical access card isn't available.
  • Access permissions: View validity periods, access schedules, permitted entry and exit methods, and exception dates.
  • Alarm management: Arm and disarm assigned alarm areas and monitor their current status.
  • Real-time notifications: Receive notifications about events in your assigned alarm areas.
  • Credential management: Change your PIN and register new access cards directly in the app.

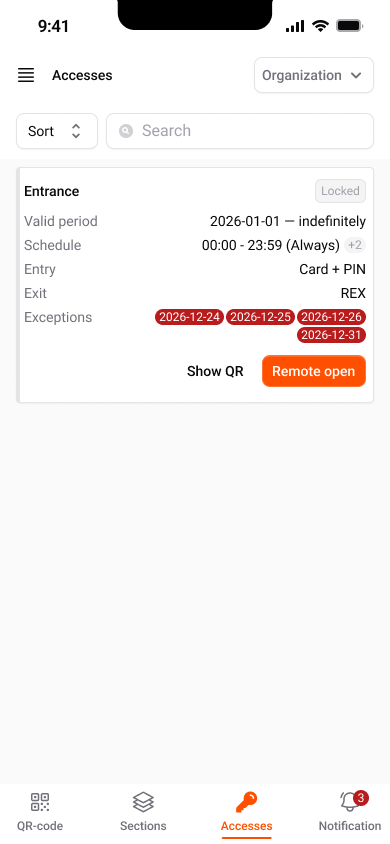

The Accesses screen in the Entryfy app showing the Entrance door as locked, valid from 2026-01-01 indefinitely, scheduled 00:00–23:59, entry by card and PIN, exit by REX, four exception dates in December, and buttons for Show QR and Remote open

Common operational picture

A common operational picture – from the control room to personnel in the field.

Through the Entryfy platform, C1 connects physical security to TAK. Alarms, camera streams and UAV video are shared with the people who need them.

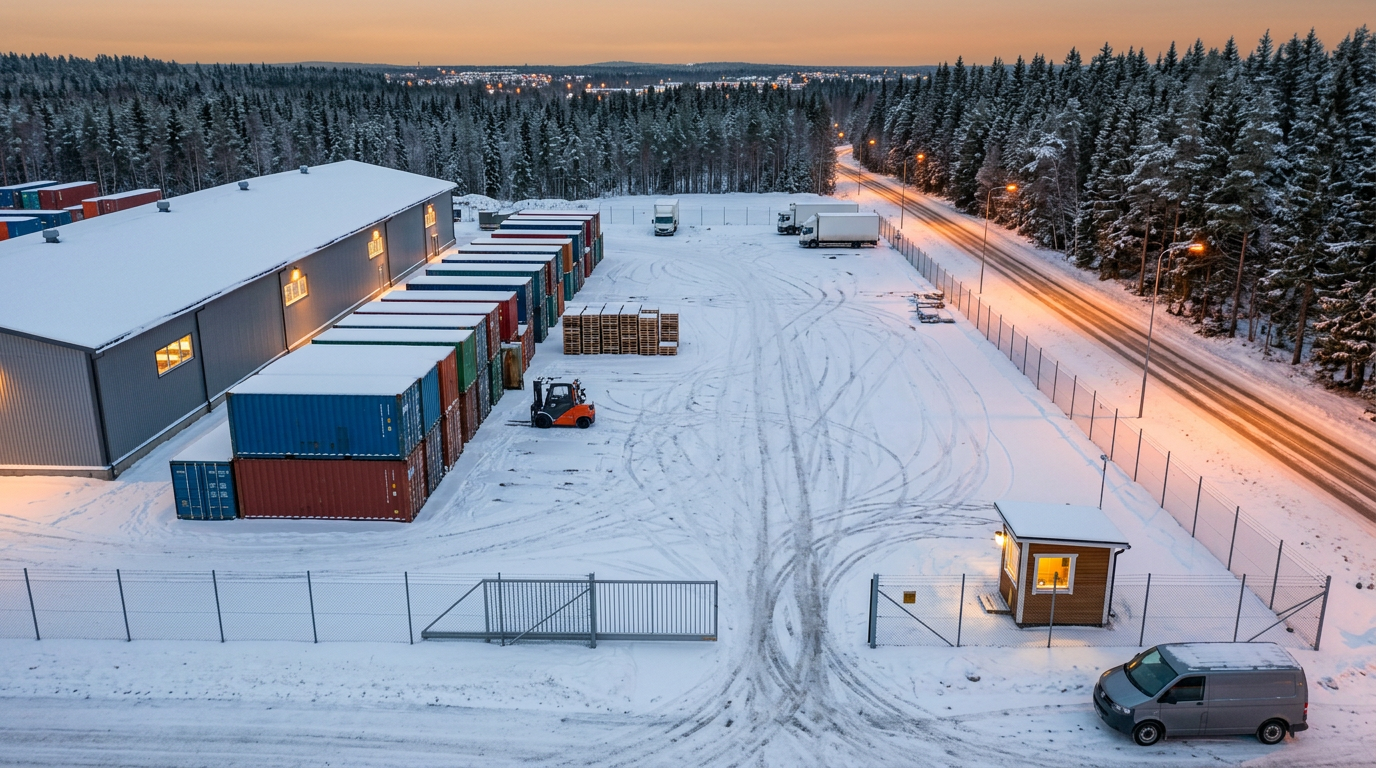

Live aerial UAV view from approximately 120 metres above the snow-covered container yard at dusk, with the sliding gate partly open beside the guardhouse
UAV 01 → Entryfy → TAK
78%
HDG 214° · GMB -42°
D
186m
H
118m
H.S
0.0m/s
V.S
0.0m/s

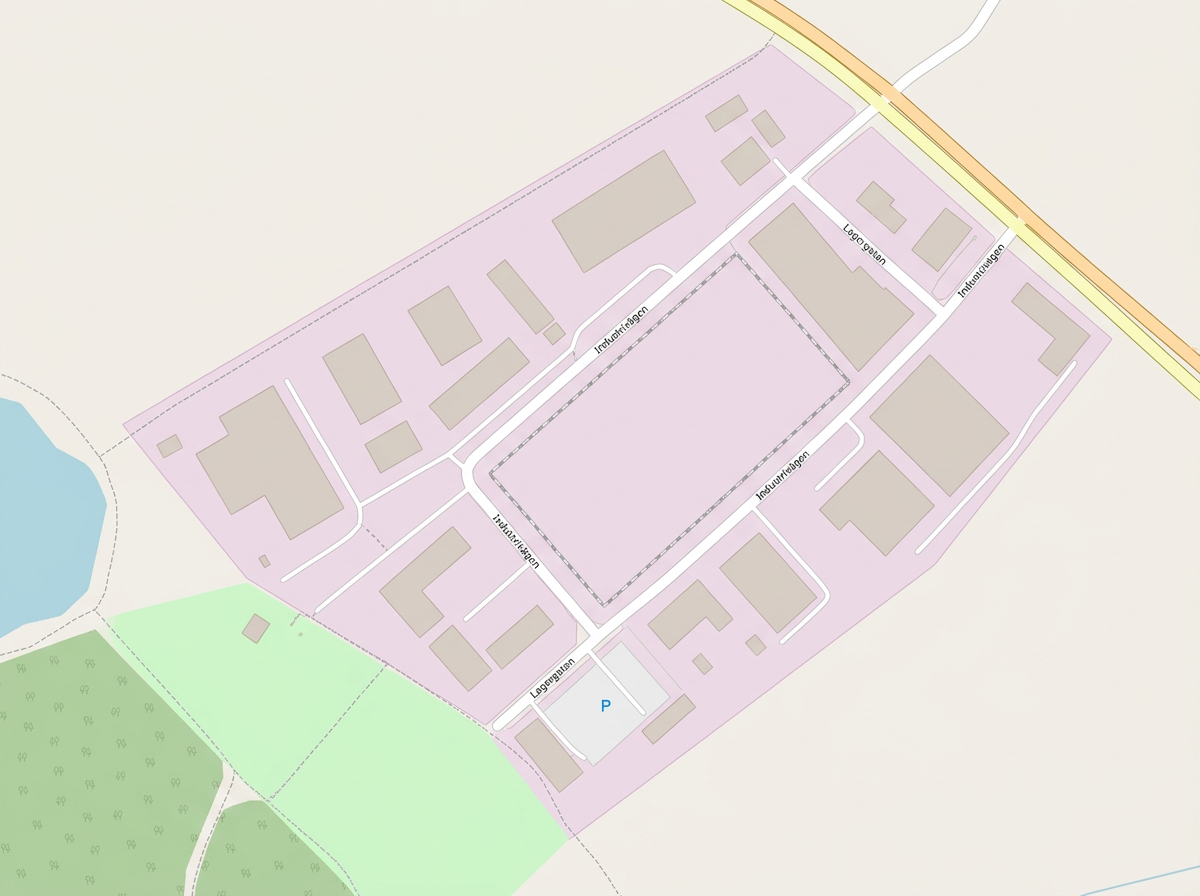

TAK map view on client 1 showing the fenced yard, team positions, the gate camera and the UAV
TAK client 1· Map view
Switch between the UAV and the gate PTZ camera, control the camera and restream either feed to a TAK client in the field. Try it in the demonstration above.

  • Alarms to TAK

    Alarms, intrusions and door events are forwarded to TAK as they occur.

  • Share any camera

    Share fixed, PTZ and UAV video streams with personnel in the field in real time.

  • Position and status

    Sites, doors and detectors are shown with position and status in the common operational picture.

  • Integrated UAV video

    UAV video appears in the same view as other cameras, is recorded and is linked to related events.

  • STANAG 4609 and MISB ST 0601

    Video interoperability based on STANAG 4609, with metadata conforming to MISB ST 0601, for integration with compatible operational systems.

  • Open interfaces

    REST, MQTT, gRPC and MCP interfaces provide access to a common event model covering access control, intrusion alarms and video.

Security

Security starts at the hardware level.

Security is integral to the C1 architecture. Secure Boot, signed firmware, hardware-protected cryptographic keys and encrypted communications help protect system integrity throughout its lifecycle. Designed for organisations with demanding requirements for security, availability and traceability.

Operator at a desk managing access permissions on a computer screen

Partners & OEM

Your product. Our technology.

Entryfy C1 and E1 can be integrated into solutions for security integrators, OEM manufacturers and the defence sector. With support for custom software, open interfaces and dedicated product identities, partners can build on Entryfy technology under their own brand.

  • Your brand

    C1 and E1 can be supplied under your brand and product identity.

  • Your signing infrastructure

    Firmware can be signed using your own certificate.

  • Your application

    Open interfaces enable you to integrate and control system functions through your own software.

  • Defined lifecycle

    Clear version documentation and defined support responsibilities.

Discover what C1 and E1 can do for your organisation.

Book a demonstration or technical walkthrough. For end customers, system integrators and OEM partners.
